德国FEMTO电流放大器OE-200-IN2-FC
德国FEMTO电流放大器OE-200-IN2-FC
| 品牌：德国FEMTO | 型号：OE-200-IN2-FC | 加工定制：是 | ||||
| 重量：0.3 ㎏ | 用途：科研和研发领域 |
产品特性：锁相放大器
产品简介：品牌:德国FEMTO ;型号:OE-200-IN2-FC ;加工定制:是 ;重量:0.3 ㎏;用途:科研和研发领域
深圳市博纳德精密仪器有限公司
详细介绍：

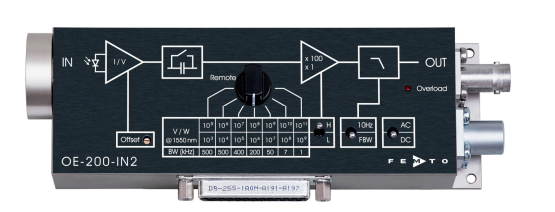

产品名称：德国FEMTO电流放大器OE-200-IN2-FC
产品型号：OE-200-IN2-FC
产品品牌：德国FEMTO
产品适用范围：科研和研发领域
产品简介：
Features：Conversion gain switchable from 1x103 to 1x1011 V/W
InGaAs PIN detector

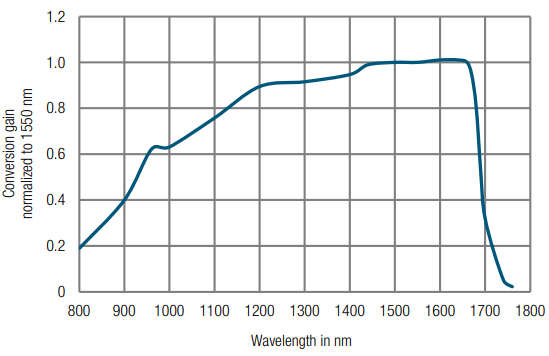

Spectral range 900-1700nm
Calibrated at 1550 nm (fiber optic”-fc” version only)
Bandwidth up to 500 kHz
Local and remote control
Applications：Fast fiber optic power meter
Spectroscoopy
General purpose opto-electronic measurements
Test conditions：VS =±15V,TA=25℃
Conversion gain：1x103 …1x1011 V/W(@1550nm)
Gain accuracy：±1% electrical,between settings
Conversion gain accuracy：OE-200-IN2-FS ±15% electro-optical
(POPT≤2 nW, @1550nm) ：OE-200-IN2-FC ±15% electro-optical(9/125 SM Fiber)
产品型号：OE-200-IN2-FC
产品品牌：德国FEMTO
产品适用范围：科研和研发领域
产品简介：
Features：Conversion gain switchable from 1x103 to 1x1011 V/W
InGaAs PIN detector
Spectral range 900-1700nm
Calibrated at 1550 nm (fiber optic”-fc” version only)
Bandwidth up to 500 kHz
Local and remote control
Applications：Fast fiber optic power meter
Spectroscoopy
General purpose opto-electronic measurements
Test conditions：VS =±15V,TA=25℃
Conversion gain：1x103 …1x1011 V/W(@1550nm)
Gain accuracy：±1% electrical,between settings
Conversion gain accuracy：OE-200-IN2-FS ±15% electro-optical
(POPT≤2 nW, @1550nm) ：OE-200-IN2-FC ±15% electro-optical(9/125 SM Fiber)
